MultiGrid 48/3000/35-50

Name: MultiGrid 48/3000/35-50
SKU: MultiGrid 48/3000/35-50
Availability: BackOrder

~~1,530.00 €~~
1,292.00 € Χωρίς ΦΠΑ
1,602.08 € Συμπεριλαμβάνει ΦΠΑ

Combined with the flexibility of a MultiPlus bidirectional converter
The MultiPlus range of bidirectional converters is the worldwide product of choice on boats and vehicles to generate AC power, and to recharge batteries, either with shore power or an onboard AC generator.
The MultiPlus also is the industry standard in on-grid and off-grid energy storage systems and is approved for use in energy storage and self-consumption systems in the UK (G83/2 and G59-3-1 standards).

Several hardware and firmware modifications were needed to qualify for VDE-AR-N 4105 and other country specific energy storage related standards.
The resulting product is the MultiGrid.

The MultiGrid fits seamlessly in all common energy storage topologies
There is no one-size-fits-all solution to energy storage. The building blocks, topology and control systems will depend on local conditions and regulations.
The MultiGrid hardware, together with a wide range of software tools, seamlessly fits in all common topologies.

Τιμή χωρίς ΦΠΑ

Available on backorder

... people are viewing this right now

MultiGrid 48/3000/35-50

MultiGrid 48/3000/35-50 The Victron Energy MultiGrid is a special version of the MultiPlus Inverter / Charger. It has been specially designed for on-grid battery storage systems. In order to comply with VDE-AR-N 4105, various adaptations have been made to the hardware and firmware.

Based on this standard, the Multigrid has been approved by Synergrid (list C10 / 26) for use in systems connected to the network, without an additional ENS (network switch).

The installation is thus simplified (fewer components) and therefore costs less.

” Multifunction inverter with an intelligent energy management ”

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.

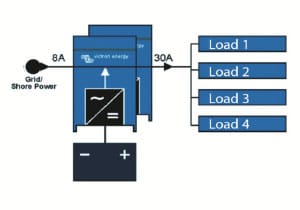

PowerControl – Dealing with limited generator, shore side or grid power

The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10A per 5kVA Multi at 230VAC). MultiGrid 48/3000/35-50 With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist – Boosting the capacity of shore or generator power

This feature takes the principle of PowerControl to a further dimension. MultiGrid 48/3000/35-50 It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Τιμή χωρίς ΦΠΑ

Weight	19 kg
Brand	Victron

SKU: MultiGrid 48/3000/35-50 Categories: Victron-Phoenix Inverter, Καθαρού ημιτόνου Inverter Converter, Μετατροπέας Inverter

μπορεί να σου αρέσει επίσης ...

-24%Limited

Ηλεκτρική τάση	2 [V]
Χωρητικότητα (C5)	500 [ΑΗ]
Μήκος	198 [mm]
Πλάτος	83 [mm]
Ύψος	568 [mm]
Ύψος με πόλους	595 [mm]
Βάρος	27.000 [kg]
Ind	ΟΧΙ

Inverter off
Ισχύς (W)	400
Κατασκευαστής	Victron Energy
Τάση Εισόδου (V)	48V DC
Τάση Εξόδου (V)	230V AC +/- 3%
Βαθμός απόδοσης (%)	91
IP προστασία	IP21
Βάρος (kg)	3.9
Εγγύηση (έτη)	5
Άλλες πληροφορίες	ECO mode, Remote on/off, LED diagnosis, Dynamic cut off

Inverter off
Ισχύς (W)	300
Κατασκευαστής	Victron Energy
Τάση Εισόδου (V)	48V DC
Τάση Εξόδου (V)	230V AC +/- 3%
Βαθμός απόδοσης (%)	90
IP προστασία	IP21
Βάρος (kg)	3.0
Εγγύηση (έτη)	5
Άλλες πληροφορίες	ECO mode, Remote on/off, LED diagnosis, Dynamic cut off
